The ili Vase Set
The ili Vase set is an adjustable vase set for users to play around and make various flower compositions.
Project Brief
As a result of more time spent at home since the first lockdown, over 3 million people started gardening in 2020, and home gardening started to be a trend.
Keywords
“Reflection, Transparent, Adjustable, Ready-made, Geometric”
Reflection
Transparent
Adjustable
Ready-made
Geometric
Concept Exploration
Show Layers in the Vase
A Flower Stand Works with any container/ glasses
Vase that user can turn around
Mimic of having water inside the vase set
The water drop ideas
Cut-offs
Water bubbles
Final Concept Development
The final idea is based on how people arrange the flowers. I find that people uses flower branch to create sections in the vase, and use flower foam or clay to keep the flower in the position.
How can I create the sections in my way?
How can I keep the design elegant but keep the manufacture price low?

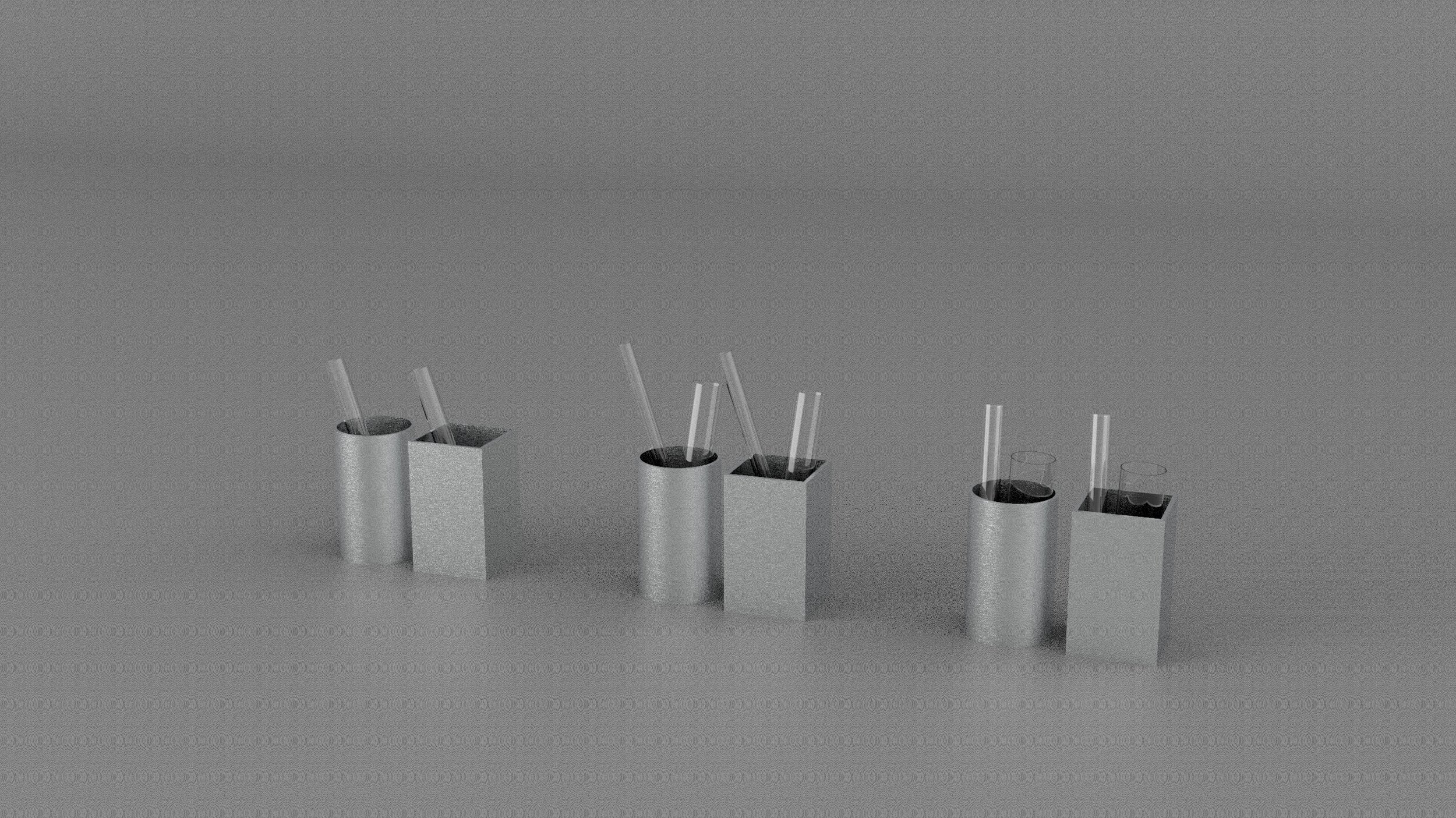

Step 1: I started with a three vases vase set. However, the stick is too thin to hold more than 2 flowers for the first vase, and the third vase is not useful.
Step 2: I change the stick of vase 1 to tubes, and explore the forms it can possibly be.
Step2: I decided to use stick instead of tube for the vase 2. Vase 3 is deleted from the set.

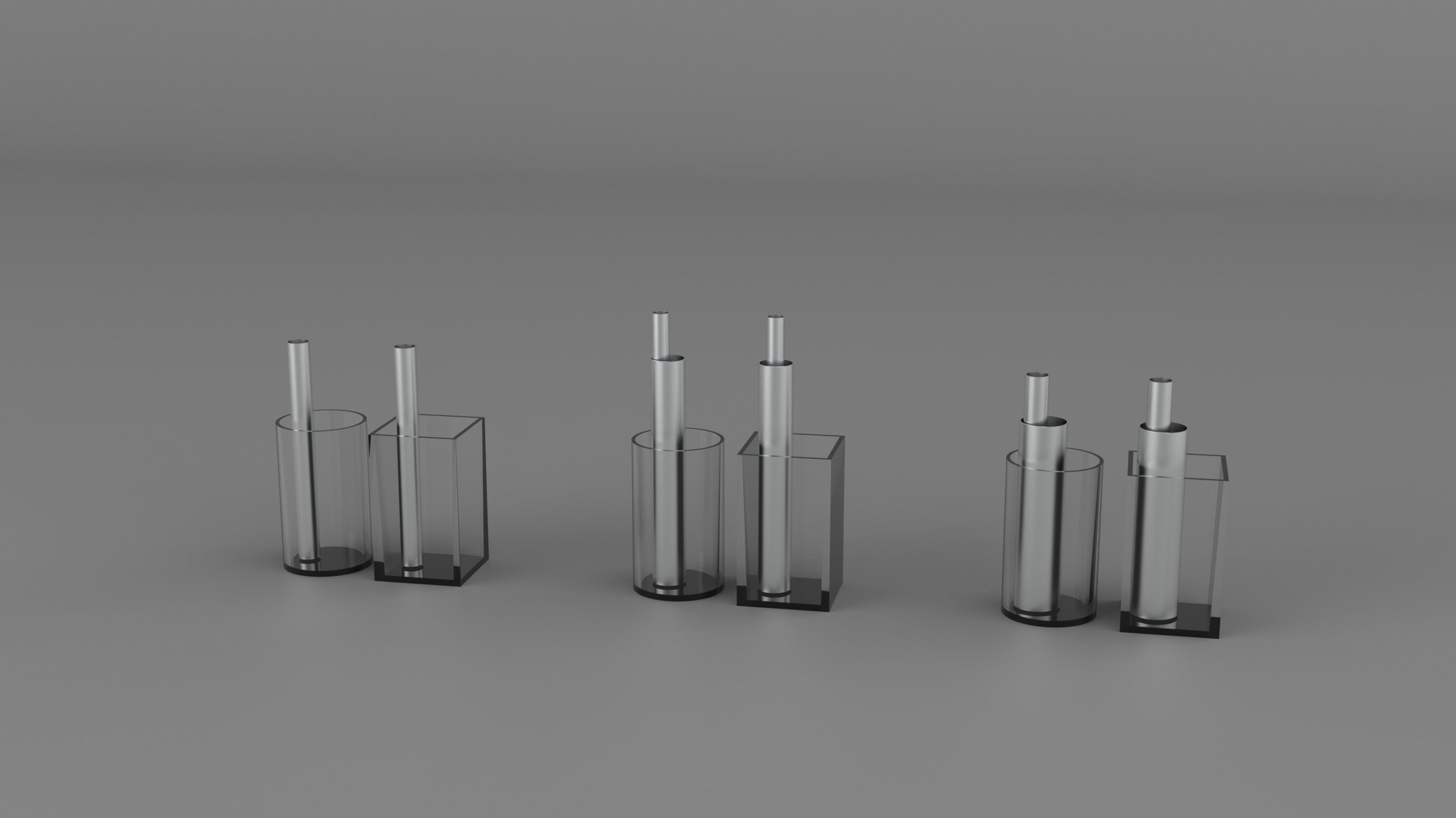

Step 3: I tried the composition of the tubes, as well as its diameters and lengths.
Step 4：Final Form Decision

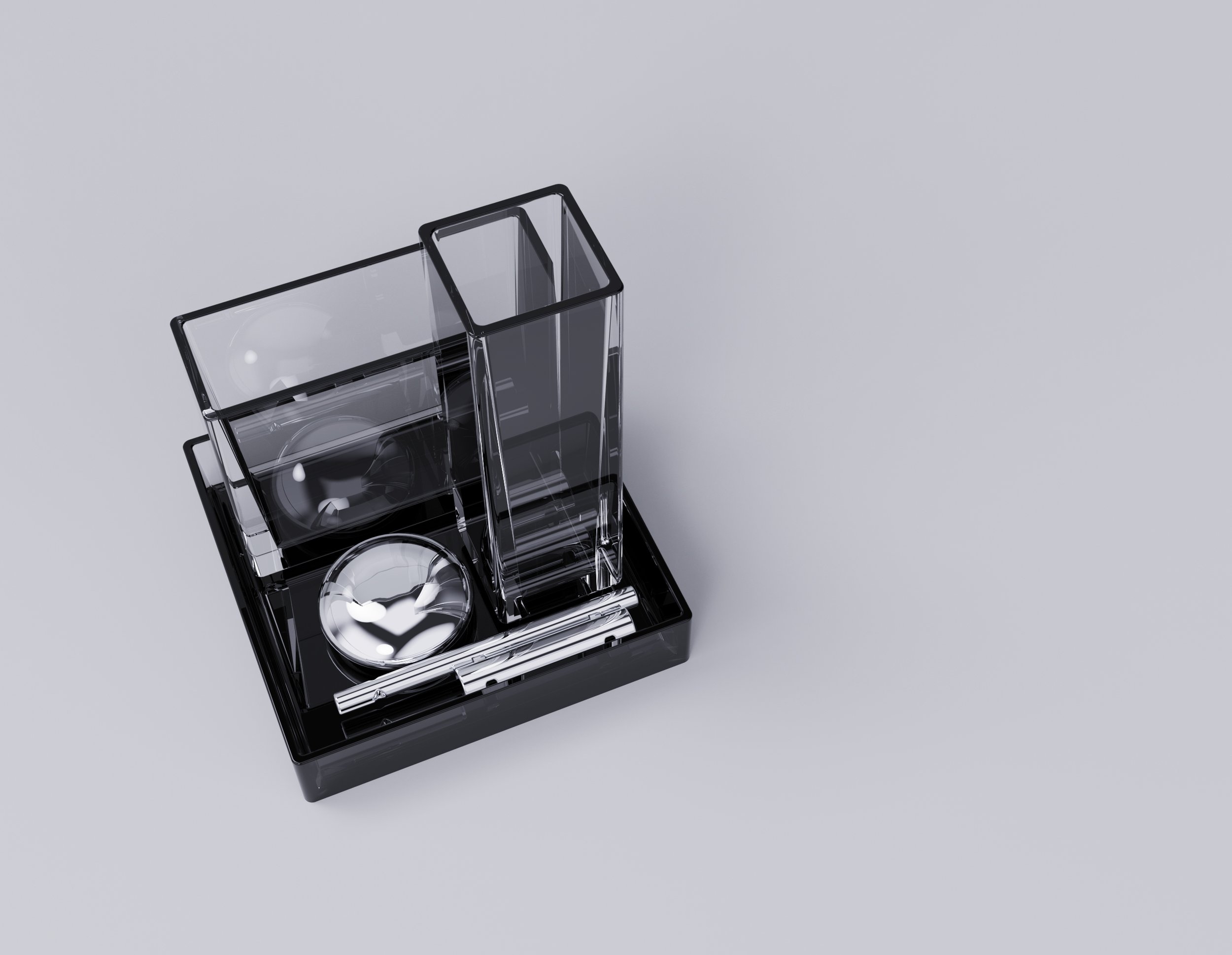

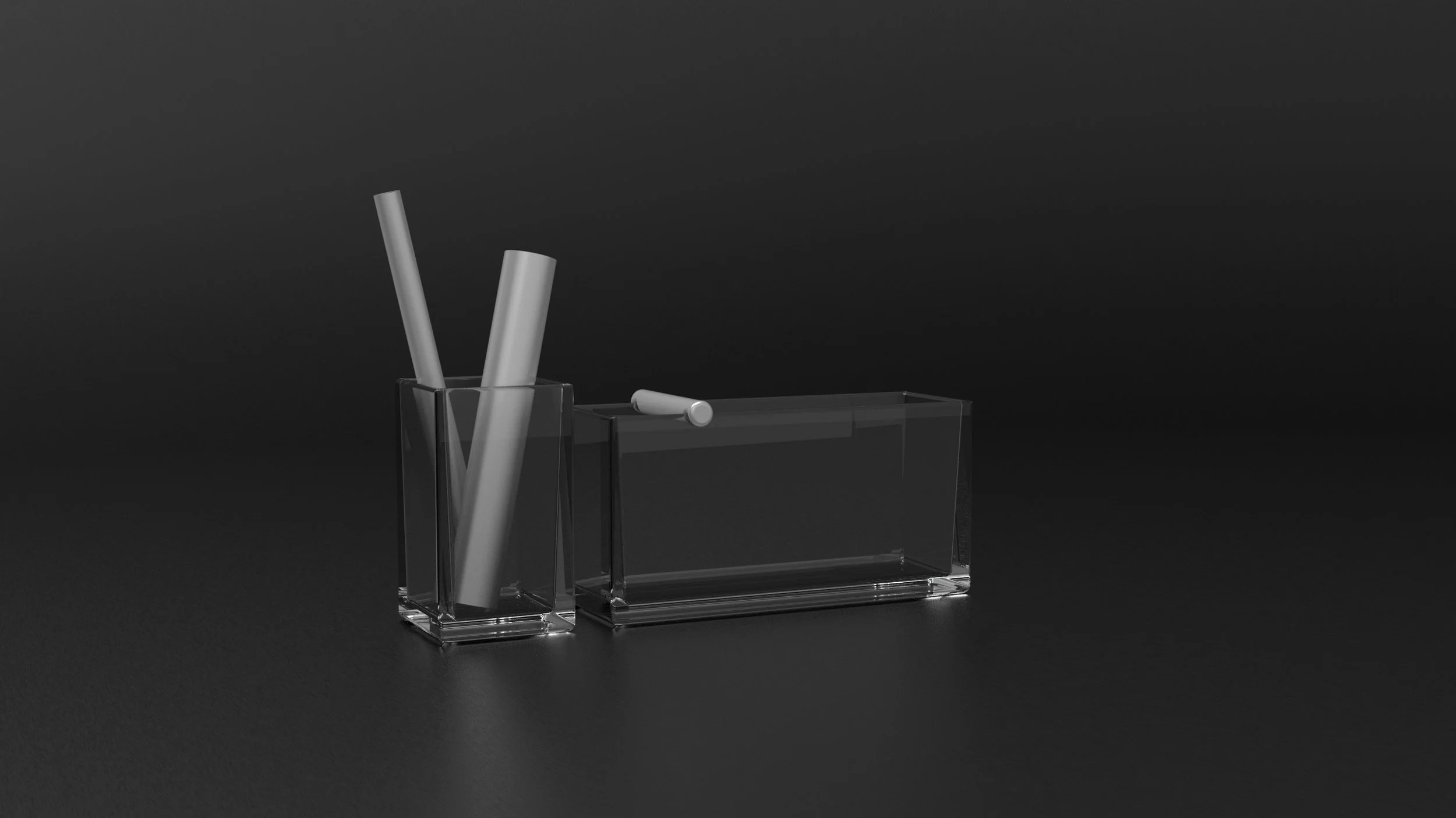

Final Design
This is the ili vase set. This set of vases contains 2 different vases, and 5 parts in total. The set aims to guide the users to play with flowers with various lengths and help the users to arrange the flowers.
Full-Size Prototype
The Metal part of the prototype is made with aluminum tubes and sticks. I sanded and polished them in the workshop.
The glass parts of the vase are made with clear acrylic, each vase container is made with 5 cnc pieces, and they are glued together with acrylic glue.
The video demonstrated how the vase set can be used.

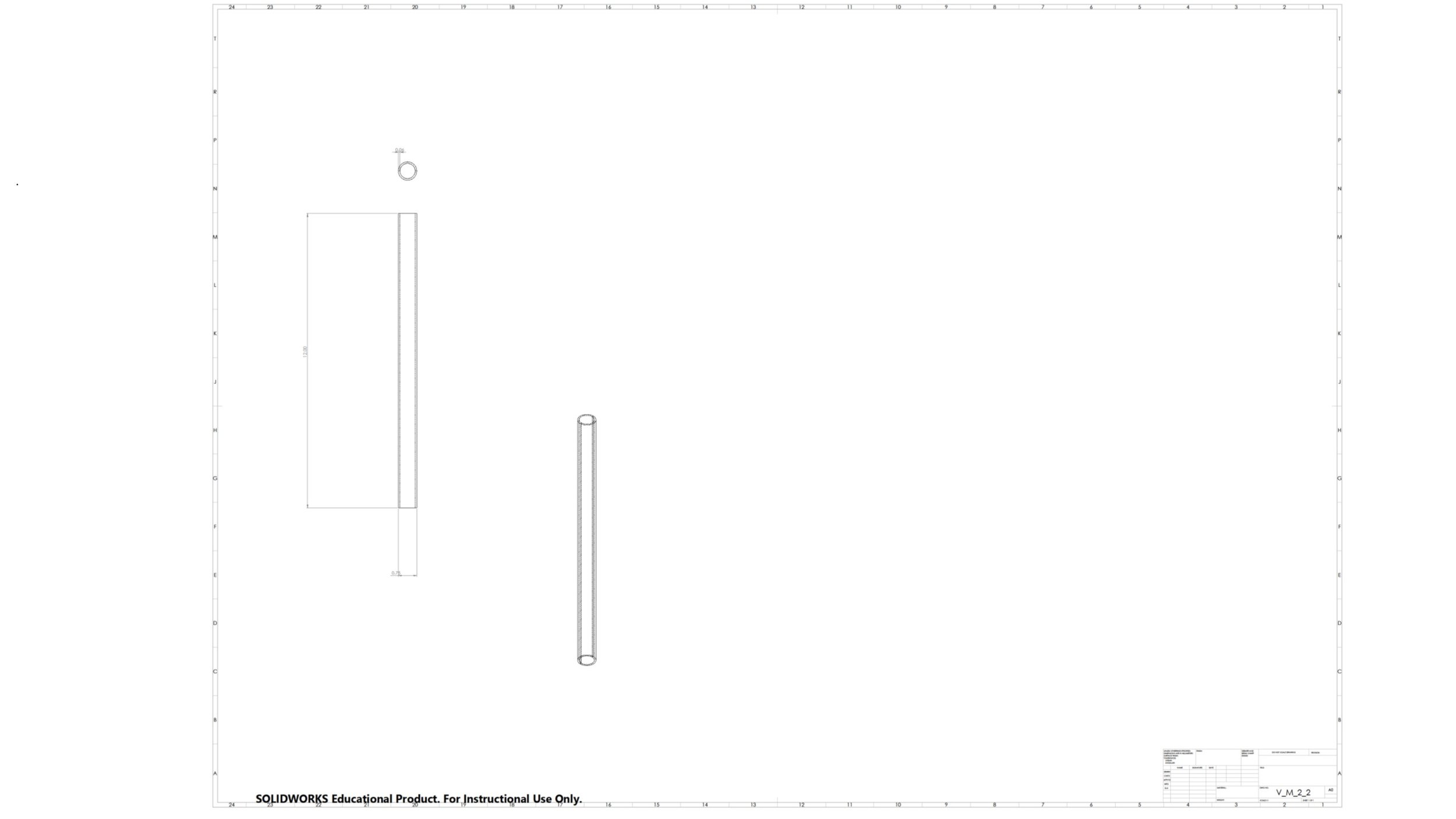

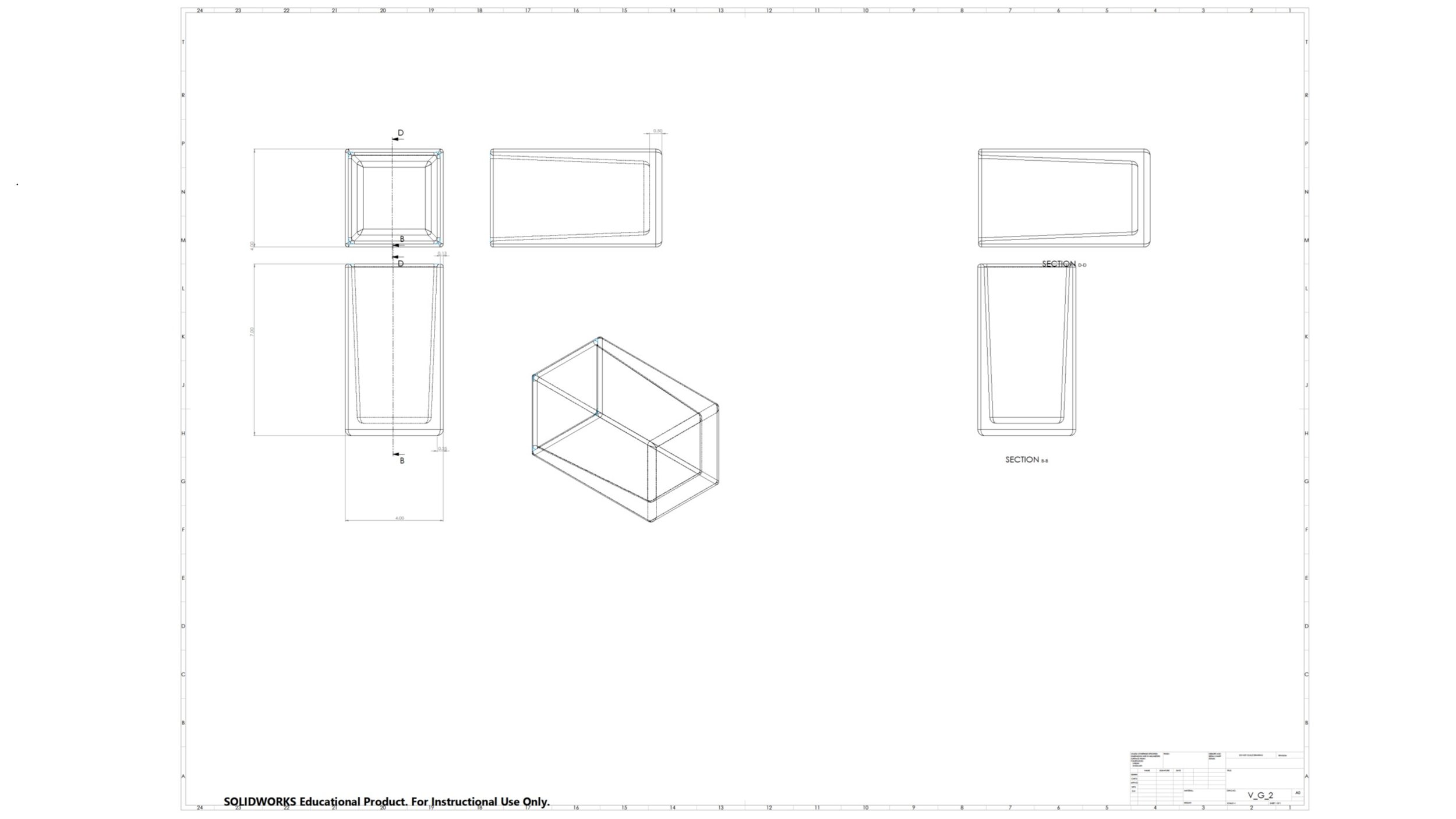

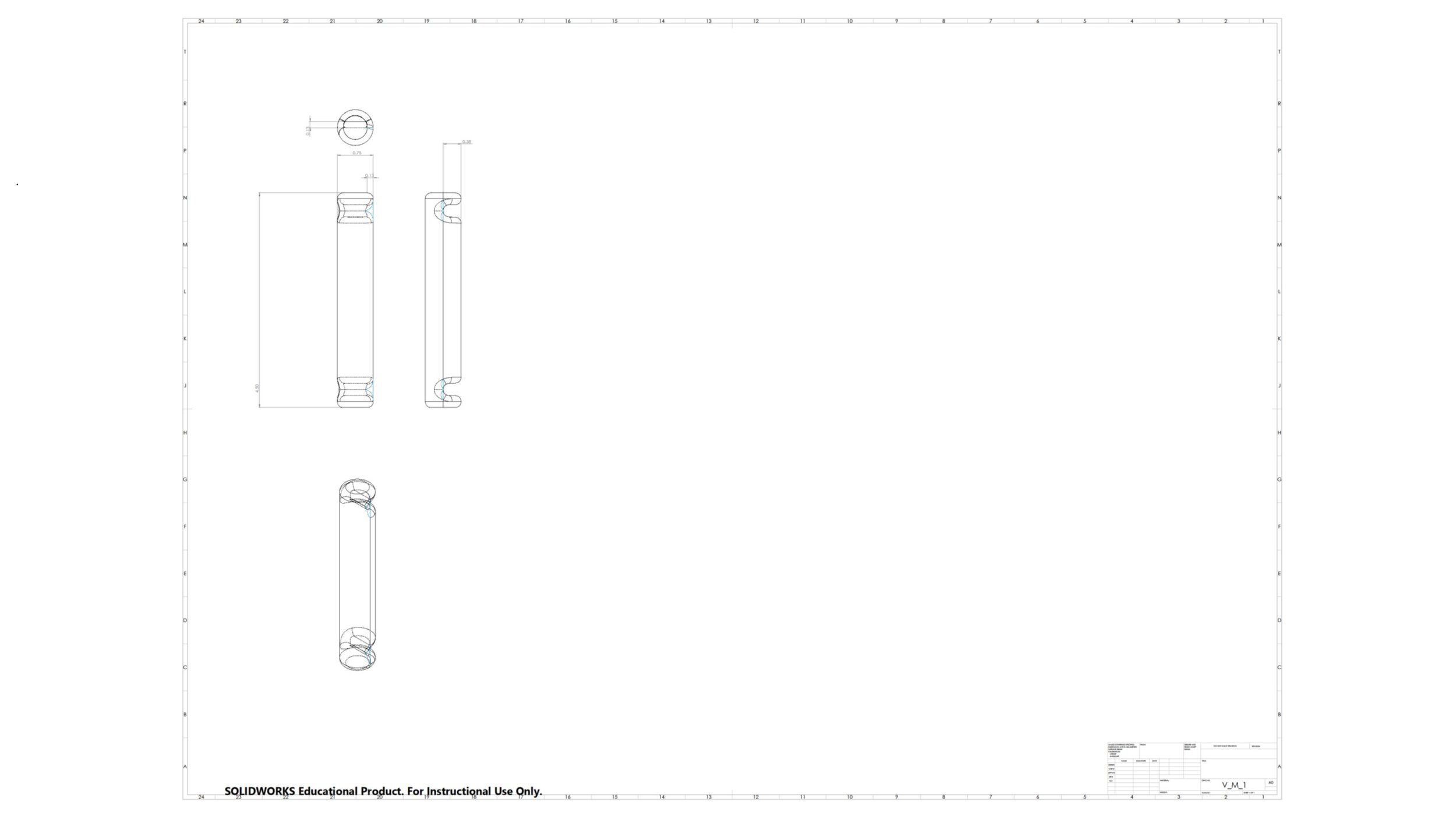

CAD Model
